Straight Setscrew type Cable Socket
Straight Setscrew type Cable Socket
Body:- Gunmetal
Bolts:- Al Bronze, Phosphor Bronze and SS
Tightening torque:- 3 Nm
| Conductor Diameter |
Palma Hole Diameter |
Conductor Material |
Weight Each |
Per Box | Part No. |
|---|---|---|---|---|---|
| 8mm | 12mm | Copper | 0.11Kg | 12 | SSC08 |
| 8mm | 12mm | Aluminum | 0.05Kg | 12 | SSCA8 |
For bonding copper and aluminum conductors to steel work.
Rod to Tape Coupling
Rod to Tape Coupling
Body:- Gunmetal, Naval Brass, Aluminium
Bolts:- Copper, Naval Brass, SS
Tightening torque:- 6 Nm
| Thread Size |
Rod Diameter Width |
Material | Weight Each |
Per Box | Part No. |
|---|---|---|---|---|---|
| M16 | 15mm | Copper | 0.230Kg | 5 | RTO16 |
| 15mm | Aluminum | 0.08Kg | 5 | RTA16 | |
| M20 | 15mm | Copper | 0.230Kg | 5 | RTO20 |
| 15mm | Aluminum | 0.08Kg | 5 | RTA20 |

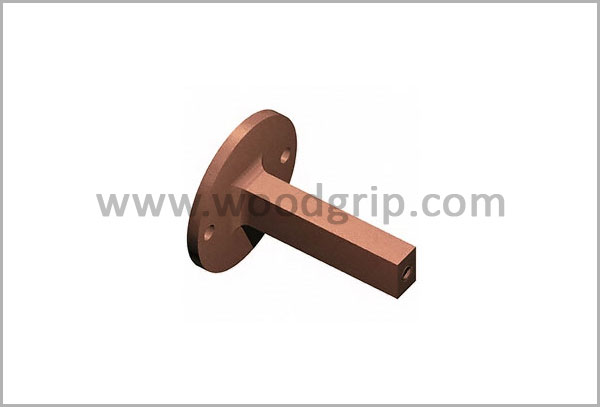

Back Plate Holdfast Stem
Back Plate Holdfast Stem
Body:- Gunmetal, Aluminium
Bolts:- Copper, Naval Brass, SS
| Conductor Material |
Weight Each |
Per Box | Part No. |
|---|---|---|---|
| Copper | 0.30Kg | 5 | BH320 |
| Aluminum | 0.10Kg | 5 | BH321 |

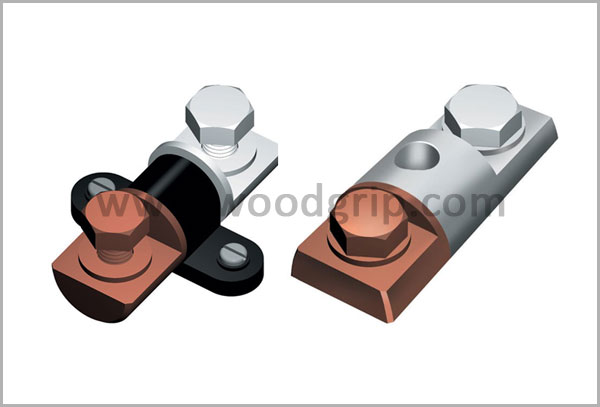

Bimetallic Connector
Bimetallic Connector
Body:- Copper, Aluminium
Bolts:- Copper, Aluminium
Tightening torque:- 12 Nm
| Conductor Size | Weight Each | Per Box | Part No. |
|---|---|---|---|
| 25 X 3mm aluminium tape to 25 X 3mm copper tape | 0.19Kg | 5 | BC801 |
| 8mm diameter aluminium conductor to 25 X 3mm copper | 0.19Kg | 5 | BC802 |
| 25 X 3mm aluminium tape to 25 X 3mm copper tape | 0.20Kg | 5 | BC803 |

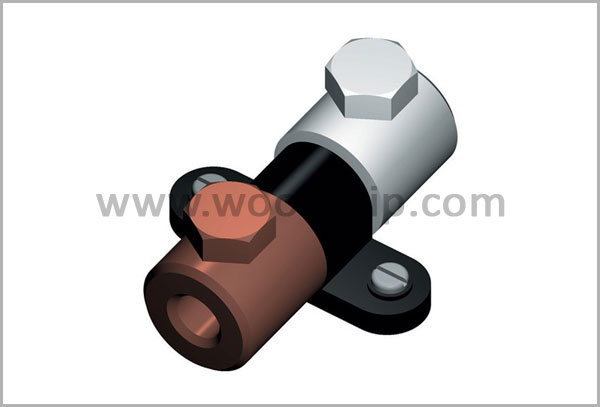

Bi-metallic Connector
Bi-metallic Connector
Body:- Gunmetal, Naval Brass, Aluminium
Bolts:- Copper, Naval Brass, SS
Tightening torque:- 12 Nm
| Conductor Size | Weight Each | Per Box | Part No. |
|---|---|---|---|
| 8mm diameter aluminium conductor to 8mm diameter copper conductor | 0.25Kg | 5 | BMC901 |
| 8mm diameter aluminium conductor to 25 X 3mm copper tape | 0.19Kg | 5 | BMC902 |
Solid Circular to Tape Connectors
Solid Circular to Tape Connectors
Body:- Gunmetal, Naval Brass, Aluminium
Bolts:- Copper, Naval Brass, SS
Tightening torque:- 5 Nm
| Conductor Diameter | Conductor Material | Weight Each | Per Box | Part No. |
|---|---|---|---|---|
| 8 & 25 X 3mm | Copper | 0.28Kg | 10 | SCT08 |
| 8 & 25 X 3mm | Alluminium | 0.09Kg | 10 | SCTA08 |

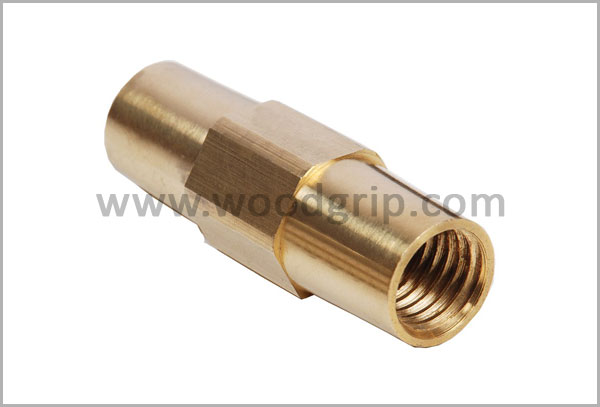

Hexagon Coupling
Hexagon Coupling
| Description | Per Box | Part No. |
|---|---|---|
| ⅝" UNC Coupling | 10 | CGI110 |
| ¾" UNC Coupling | 10 | CGI111 |
