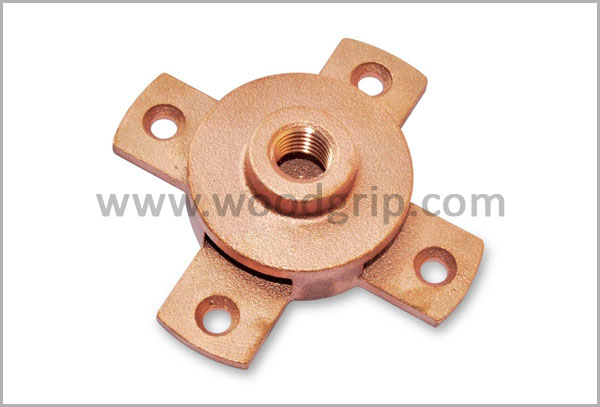

Air Base Terminal

Air Base Terminal
Air Base Terminal
Body:- Gunmetal, Aluminium
Thread
Size		 Max. Conductor
Width		 Material Weight
Each		 Per Box Part No.
M16 25mm Copper 0.375Kg 5 ABT161
25mm Aluminum 0.125Kg 5 ABT162
M20 25mm Copper 0.375Kg 5 ABT201
25mm Aluminum 0.125Kg 5 ABT202

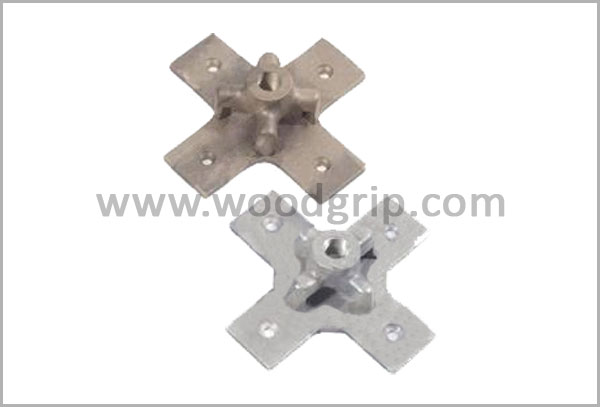

Flat Air Rod Saddle

Flat Air Rod Saddle
Flat Air Rod Saddle
Body:- Gunmetal, Aluminium
Thread
Size		 Max. Conductor
Width		 Material Weight
Each		 Per Box Part No.
M16 31mm Copper 0.500Kg 5 ATS16
31mm Aluminum 0.200Kg 5 ATSA16
M20 31mm Copper 0.500Kg 5 ATS20
31mm Aluminum 0.200Kg 5 ATSA20

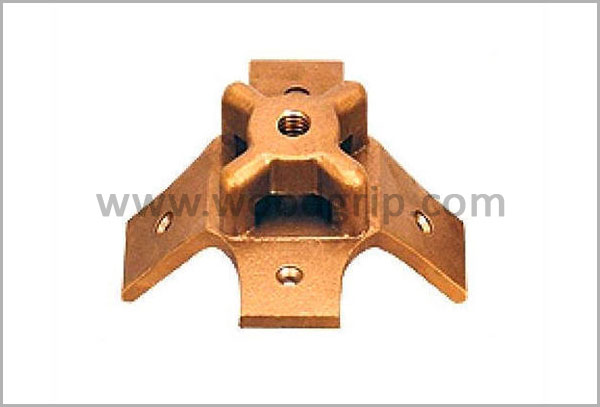

Ridge Saddle

Ridge Saddle
Ridge Saddle
Body:- Gunmetal, Aluminium
Thread
Size		 Max. Conductor
Width		 Material Weight
Each		 Per Box Part No.
M16 31mm Copper 1.00Kg 2 RSO16
31mm Aluminum 0.35Kg 2 RSA16
M20 31mm Copper 1.00Kg 2 RSO20
31mm Aluminum 0.35Kg 2 RSA20

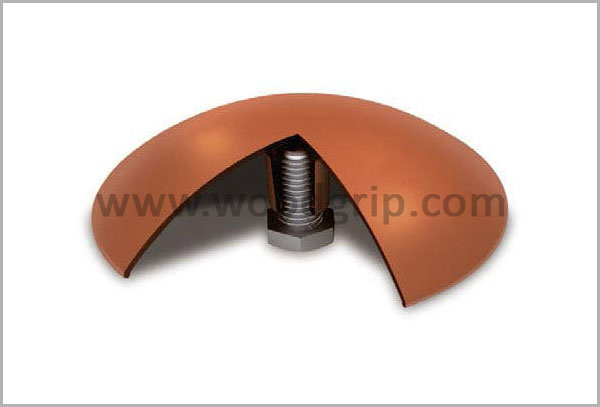

Strike Pad

Strike Pad
Strike Pad
Body:- Gunmetal, Aluminium
Conductor Material Weight Each Per Box Part No.
Copper 0.41Kg 5 SPO10
Aluminum 0.13Kg 5 SPA10

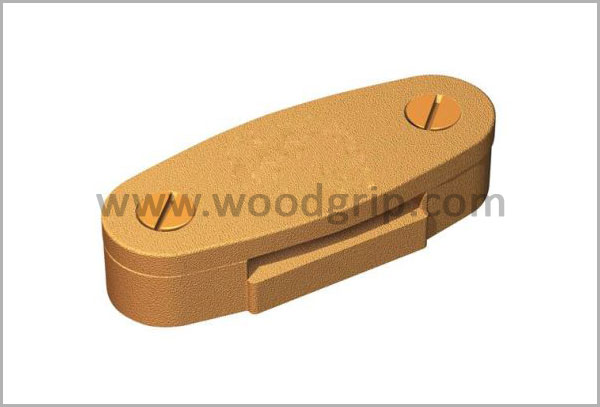

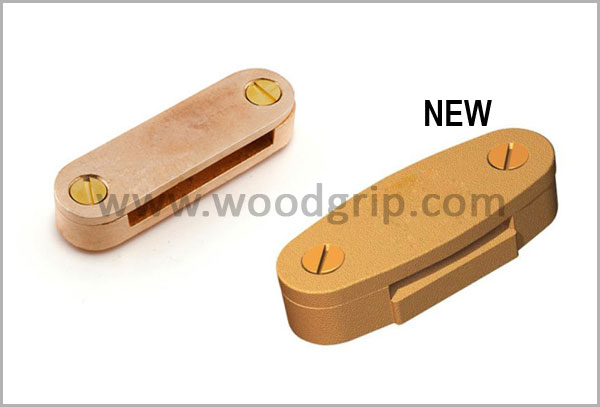

DC Tape Clip

DC Tape Clip
DC Tape Clip
Body:- Gunmetal, Naval Brass, Aluminium
Bolt:- Copper, Naval Brass, SS
Tightening Torque:- 5 Nm
Conductor Size - mm Conductor Material Weight Each Per Box Part No.
25 X 3 Copper 0.70Kg 20 DC253
25 X 6 0.90Kg 20 DC256
31 X 3 0.10Kg 20 DC313
31 X 6 0.11Kg 20 DC316
38 X 3 0.11Kg 20 DC383
38 X 6 0.12Kg 20 DC386
40 X 4 0.14Kg 20 DC404
40 X 6 0.14Kg 20 DC406
50 X 3 0.15Kg 20 DC503
50 X 6 0.15Kg 20 DC506
25 X 3 Alluminium 0.025Kg 20 DCA253
25 X 6 0.030Kg 20 DCA256
31 X 3 0.040Kg 20 DCA313
31 X 6 0.040Kg 20 DCA316
38 X 3 0.050Kg 20 DCA383
38 X 6 0.050Kg 20 DCA386
40 X 4 0.060Kg 20 DCA404
40 X 6 0.060Kg 20 DCA406
50 X 3 0.070Kg 20 DCA503
50 X 6 0.070Kg 20 DCA506
25 X 3 Naval Brass
Forged		 0.050Kg 20 DCF253
25 X 6 0.060Kg 20 DCF256
31 X 3 0.080Kg 20 DCF313
31 X 6 0.080Kg 20 DCF316
38 X 3 0.10Kg 20 DCF383
38 X 6 0.10Kg 20 DCF386
40 X 4 0.12Kg 20 DCF404
40 X 6 0.12Kg 20 DCF406
50 X 3 0.13Kg 20 DCF503
50 X 6 0.13Kg 20 DCF506
NEW 25 X 3 Copper 0.065Kg 20 DCN253
NEW 31 X 3 0.090Kg 20 DCN313
NEW 50 X 6 0.130Kg 20 DCN506

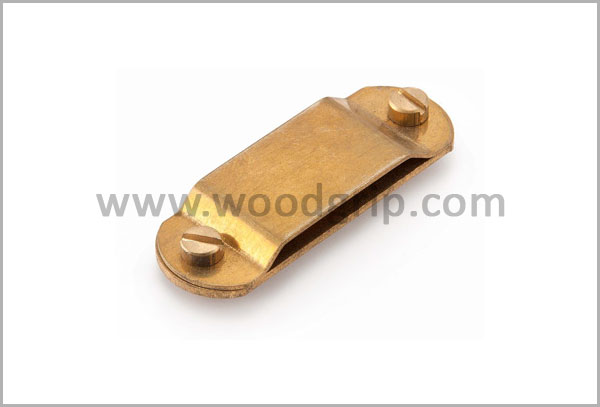

Tape Clip

Tape Clip
Tape Clip
Body:- Gunmetal, Naval Brass, Aluminium
Bolt:- Copper, Naval Brass, SS
Tightening Torque:- 5 Nm
Conductor Size - mm Conductor Material Weight Each Per Box Part No.
25 X 3 Brass 0.070Kg 50 TCT253
31 X 3 0.085Kg 50 TCT313
50 X 6 0.100Kg 50 TCT506
25 X 3 Alluminium 0.130Kg 50 TCA253
31 X 3 0.140Kg 50 TCA313
50 X 6 0.150Kg 50 TCA506

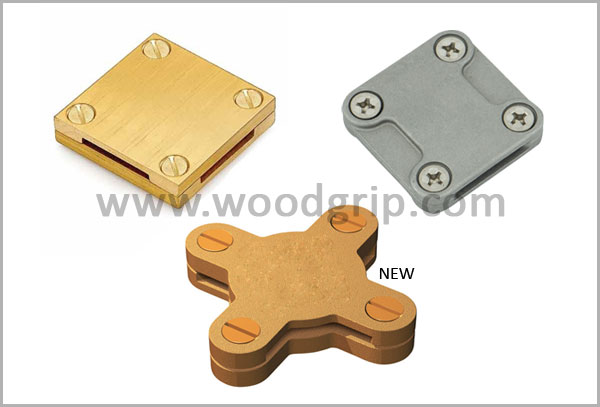

Square Tape Clamp

Square Tape Clamp
Square Tape Clamp
Body:- Gunmetal, Naval Brass, Aluminium
Bolt:- Copper, Naval Brass, SS
Tightening Torque:- 5 Nm
Conductor Size - mm Conductor Material Weight Each Per Box Part No.
25 X 3 Copper 0.22Kg 10 STC253
25 X 6 0.25Kg 10 STC256
31 X 3 0.32Kg 5 STC313
38 X 6 0.40Kg 5 STC386
50 X 6 0.60Kg 5 STC506
25 X 3 Alluminium 0.080Kg 10 STCA253
25 X 6 0.10Kg 10 STCA256
31 X 3 0.12Kg 5 STCA313
38 X 6 0.15Kg 5 STCA386
50 X 6 0.20Kg 5 STCA506
25 X 3 Naval Brass
Forged		 0.16Kg 10 STCF253
25 X 6 0.20Kg 10 STCF256
31 X 3 0.25Kg 5 STCF313
38 X 6 0.32Kg 5 STCF386
50 X 6 0.45Kg 5 STCF506
NEW 25 X 3 Copper 0.16Kg 10 STCN253
NEW 31 X 3 0.24Kg 5 STCN313
NEW 50 X 6 0.50Kg 5 STCN506

DC Tape Clips

DC Tape Clips
DC Tape Clips
Disctiption Per Box Part No.
1" X ⅛" Copper Tape 25 CGI102
1" X ¼" Copper Tape 15 CGI103

Adjustable DC Tape Clips

Adjustable DC Tape Clips
Adjustable DC Tape Clips
Disctiption Per Box Part No.
50mm X 6mm Copper Tape 10 CGI104

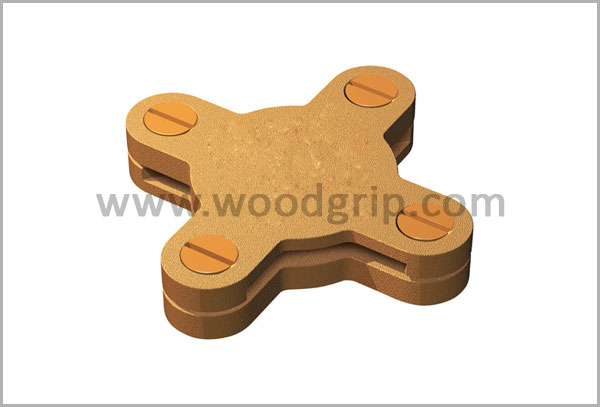

Square Tape Clamp

Square Tape Clamp
Square Tape Clamp
Disctiption Per Box Part No.
1" X ⅛" Copper Tape 15 CGI105
1" X ¼" Copper Tape 15 CGI106
50mm X 6mm Copper Tape 5 CGI107
